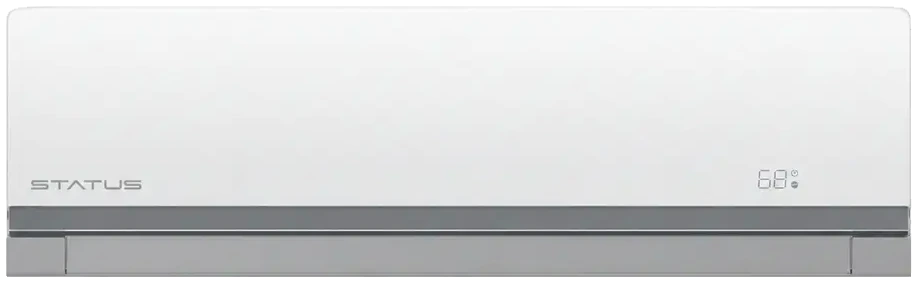

Status DIY wall-mount indoor unit
9K, 12K or 18K indoor unit with built-in Wi-Fi
Indoor unit only — for replacements and added rooms. A complete mini split is on the Mini Splits page.
Free curbside shipping
Why order from Status
Shipping expected to begin by November 1, 2026
Pre-orders go out in order; tracking arrives by email the day yours leaves the warehouse.
Real HVAC techs on the phone
24/7 — before and after your install.
About this indoor unit
- Adds a room to a Status outdoor unit with a free port (27K takes up to three indoor units; 18K takes two)
- Coverage: 9K up to 400 sq ft · 12K 400–600 sq ft · 18K 600–800 sq ft
- Wi-Fi built in: ConnectLife app, Amazon Alexa and Google Assistant
- Needs a pre-charged line set matched to the indoor unit: 1/4" × 3/8" for 9K/12K, 1/4" × 1/2" for 18K (sold separately)
- Powered from the outdoor unit
Accessories
Technical specifications
12K indoor unit
- Coverage
- 400–600 sq ft
- Rated cooling
- 12,000 Btu/h
- Rated heating
- 13,000 Btu/h
- Wi-Fi
- Built in, 2.4 GHz
- App & voice control
- ConnectLife app, Amazon Alexa, Google Assistant
- Power
- From the outdoor unit
- Refrigerant
- R454B
- Line set
- 1/4" × 3/8" pre-charged Quick Connect
- Communication cable
- 25 ft, attached
- Dimensions
- 35" W × 10.75" H × 8.75" D
- Unit weight
- 18.75 lb
- Shipping carton
- 36.6" × 15" × 11.2"
- Shipping weight
- 24 lb
Each indoor unit comes with a 25 ft communication cable attached. If its line set run is longer than 25 ft, that indoor unit needs a longer communication cable (not included).
Manuals & downloads
- Owner’s manualInstallation, wiring, operation and troubleshooting
- App manualConnectLife app setup, Amazon Alexa and Google Assistant
- Remote control manualButtons, modes and timers
Shipping & warranty
When it arrives
It comes to the curb, not inside; transit takes 4–10 days once it ships.
Warranty
8-year limited warranty on the compressor and parts, handled by Status directly. Installing it yourself doesn't affect coverage: the warranty applies to your own installation done per the instructions and local codes — no HVAC contractor required. Register your system once it's installed.
