System components

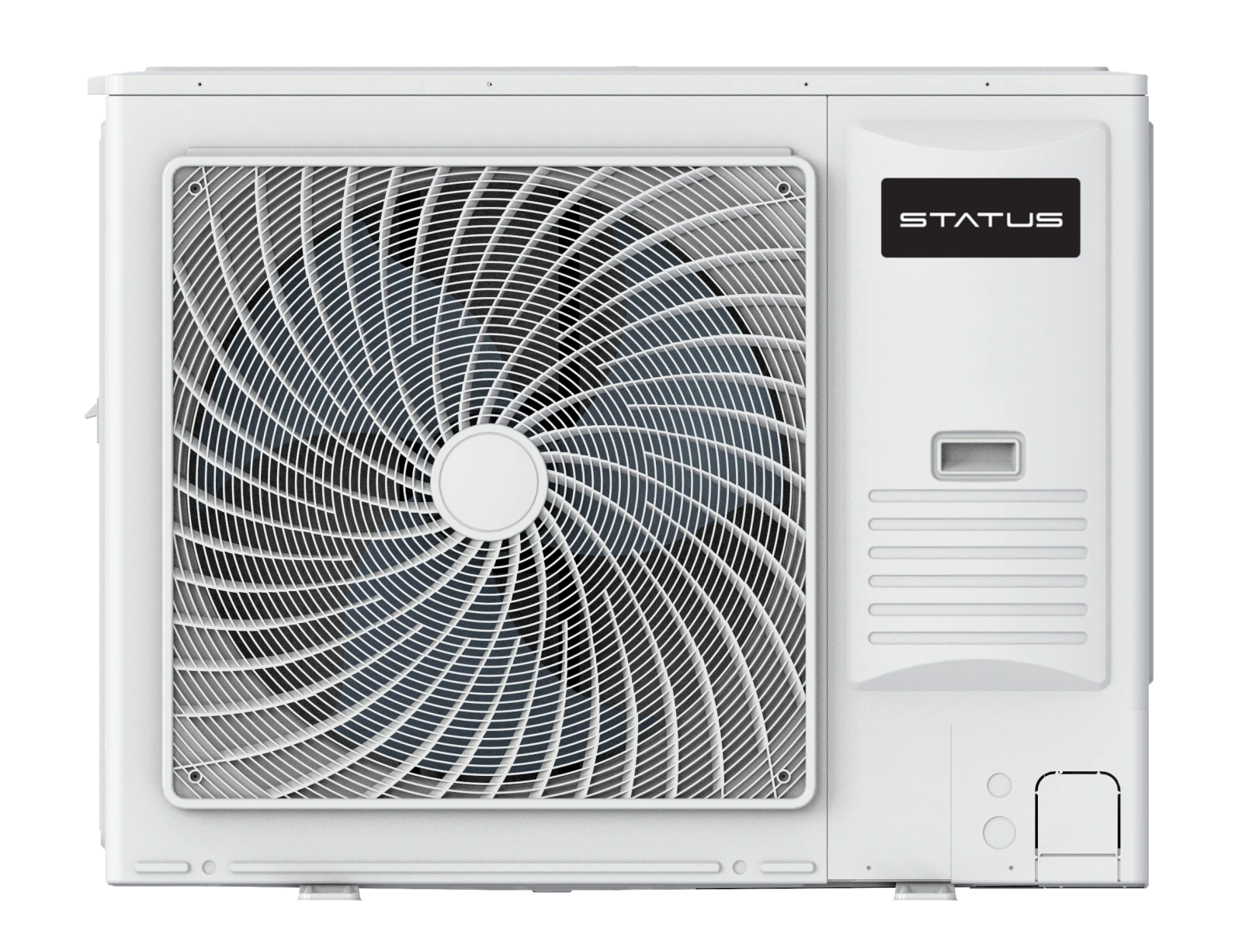

Status DIY multi-zone outdoor unit
Outdoor unit for 2 or 3 indoor units
Outdoor unit only — for replacements and added rooms. A complete mini split is on the Mini Splits page.
$1,499.00$1,936.00
Free curbside shipping
Why order from Status
Shipping expected to begin by November 1, 2026
Pre-orders go out in order; tracking arrives by email the day yours leaves the warehouse.
Real HVAC techs on the phone
24/7 — before and after your install.
About this outdoor unit
- 18K runs two 9K/12K indoor units; 27K runs two or three 9K/12K/18K indoor units
- Inverter heat pump · 27K rated SEER2 23 (cooling efficiency rating — higher is better)
- Heats down to -13°F outdoor
- Quick Connect ports for pre-charged line sets (sold separately, matched to each indoor unit)
Accessories
Paintable channel that hides and protects the line set run along your exterior wall.
$59.00 per kit
Lifts the outdoor unit off the ground — clear of snow, leaves, and splash-back.
$49.00 per bracket
Outdoor disconnect box, whip, and wiring to connect the outdoor unit to your circuit.
$79.00 per kit
Shields the outdoor unit's inverter electronics from power surges and brownouts.
$69.00 per unit
Technical specifications
18K outdoor unit
- Supports
- 2 indoor units, 9K or 12K
- Nominal capacity
- 18,000 Btu/h
- Refrigerant
- R454B
- Cooling range
- 14 °F to 109 °F outdoor
- Heating range
- −13 °F to 75 °F outdoor
- Power supply
- 230 V, single phase
- Breaker (MOP)
- 25 A
- Min. circuit ampacity
- 21 A
- Shipping carton
- 39" × 17.7" × 28.7"
- Shipping weight
- 112 lb
Manuals & downloads
- Owner’s manualInstallation, wiring, operation and troubleshooting
- App manualConnectLife app setup, Amazon Alexa and Google Assistant
- Remote control manualButtons, modes and timers
Shipping & warranty
When it arrives
It comes to the curb, not inside; transit takes 4–10 days once it ships.
Warranty
8-year limited warranty on the compressor and parts, handled by Status directly. Installing it yourself doesn't affect coverage: the warranty applies to your own installation done per the instructions and local codes — no HVAC contractor required. Register your system once it's installed.
